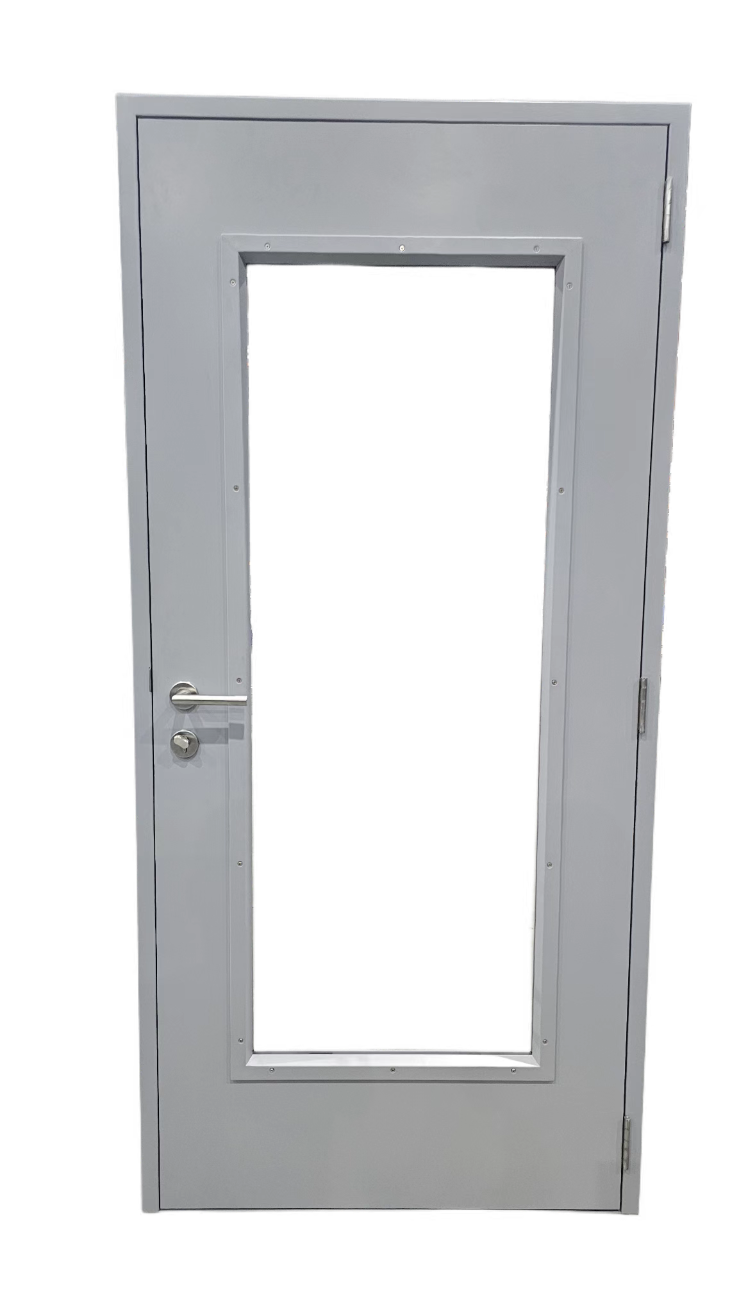

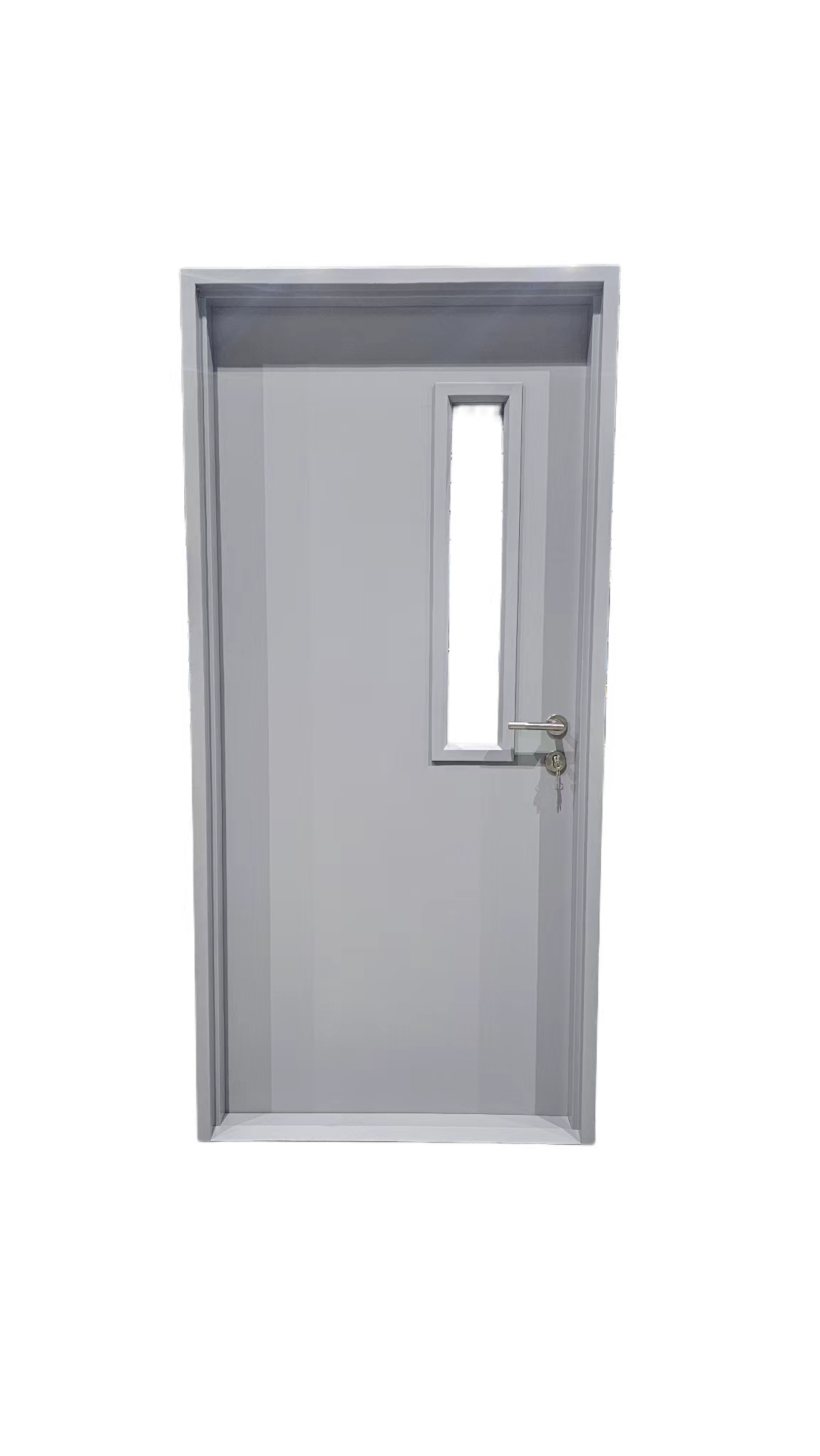

Hollow Metal Door with vision panel

180minuntes Fire rate door and frame system use in the commercial, education, hospitality, multi family, security and health care market place, for both new and retrofit construction.

  • 18 Gauge( 16 and 20 Gauges available)
  • Continuously laser welded seamless edge
  • Galvanized Steel(All the door component in Galvanized steel)
  • Full Body High Density Polystyrene Core (Available in Honeycomb)
  • Non-Handed Design
  • 13-Gauge Closer Reinforcement(Galvanized)
  • 8-Gauge Reversible Hinge Reinforcement(Galvanized)
  • Flush Top Cap and Inverted Bottom Cap(Galvanized)
  • Standard Lock Preparations Include 161, Fed 86 Edge, Panic Bar Reinforced(Galvanized)
  • WHI / ITS up to 3 hour, Positive Pressure and “S” Smoke included
  • Flush face standard(Available with 6 Panel, 2 Panel and a variety of lite kits and louvers)
  • Primed Painted(Available in Powder)
  • Built to meet and exceed ADA, ANSI, ASTM, and SDI standards
Door leaf introduction:
