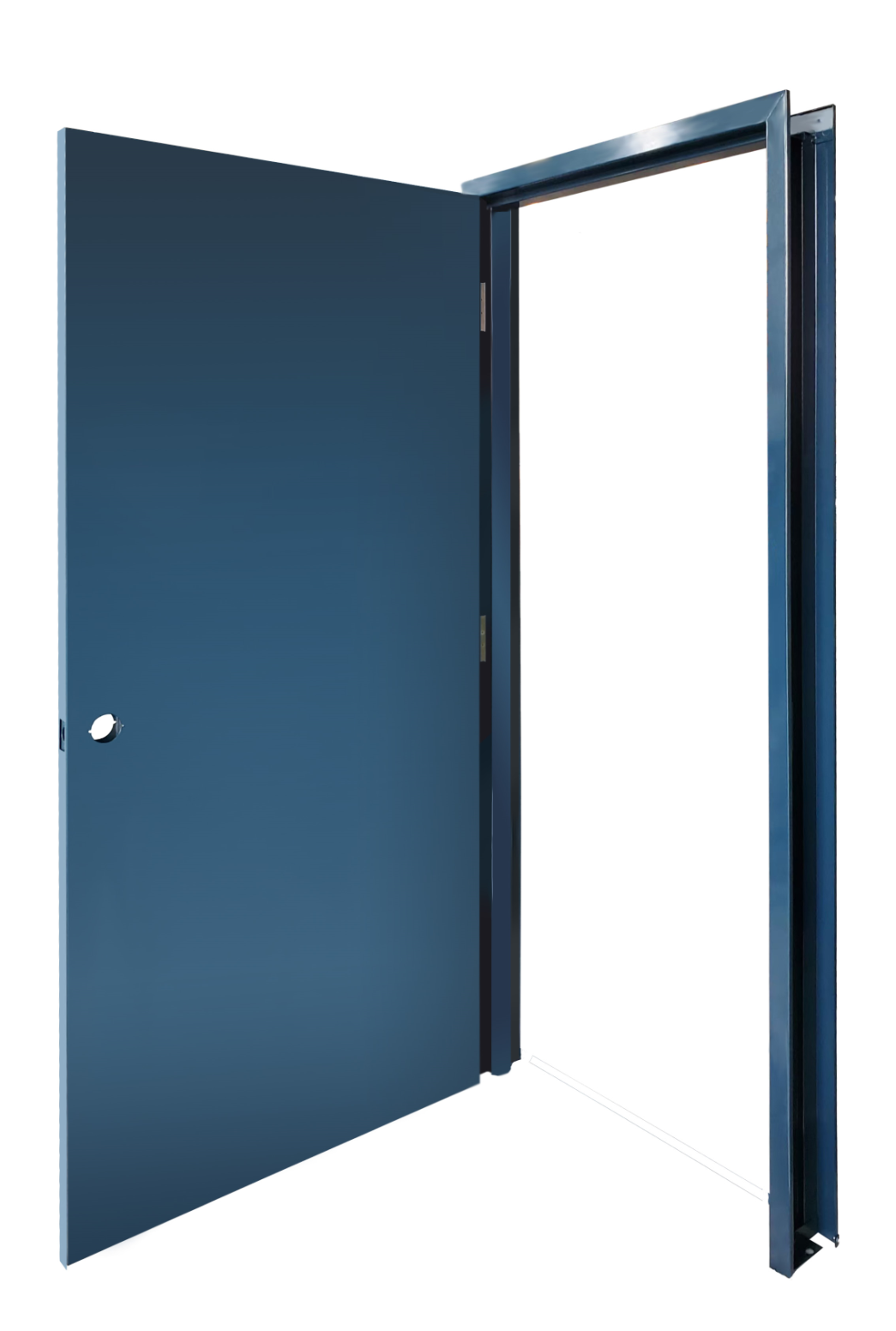

Hollow Metal Frame 180minutes

180minutes Fire-Rated steel frame play a vital role in keeping people safe and minimizing property damage during a fire

Contact Us
  • 16 Gauge Galvanized Steel
  • Unequal Rabbet 2-inch Face (Also availble with 4-inch Face Heads)
  • 5/8” Stop Height
  • Exact Fit Mitered Corners
  • 7 Gauge Hinge Reinforcements with Standard / Heavy Duty Adjustment
  • 4-7/8” Universal Strike Preparation
  • Includes Floor Anchor
  • 9/32” Silencer Preparation
  • Wall Anchors for Masonry, Wood Stud and Metal Stud Walls, loose or welded in
  • 4-inch to 13-inch Jamb Depth
  • 90-Minute to 3-Hour Label
Frame introduction:
